Description

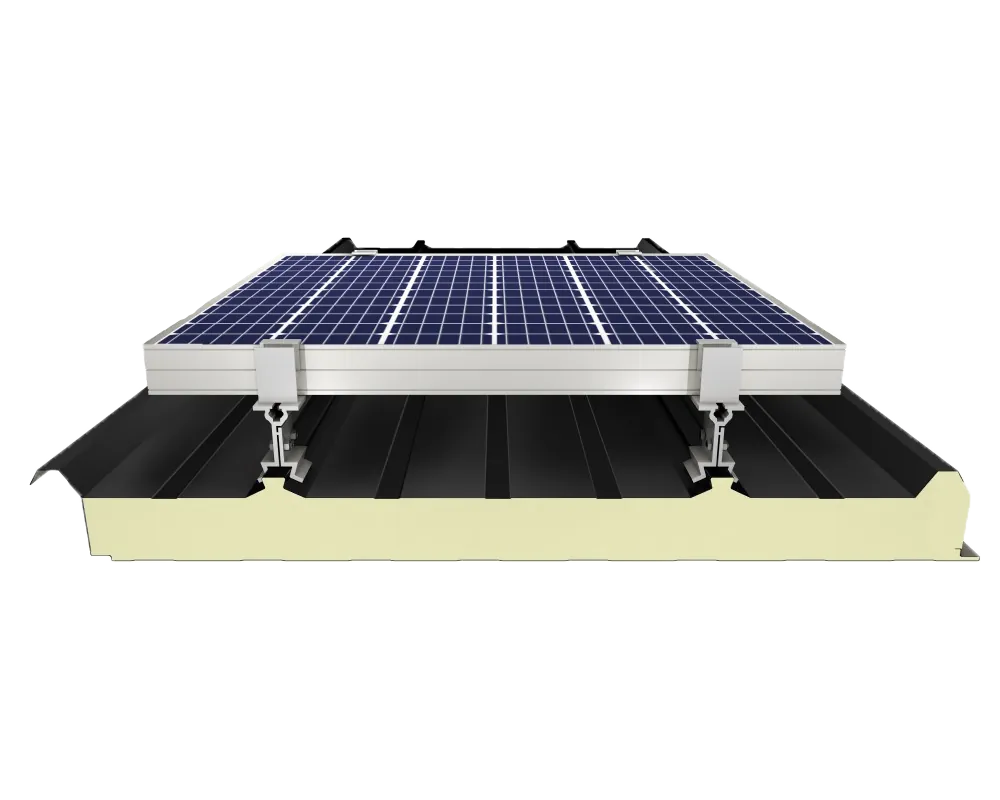

Sandwich roof panel specifically designed for solar power plants (GES), working in integration with PV panel mounting systems. High reflectance paint option, precise tolerances and special profile details minimize efficiency loss in GES installations.
Teknik Özellikler
| Filling material | PIR / PUR |
|---|---|
| Profile height | 40 – 60 mm |
| GES compatibility | Compatible with all PV rail systems |
| Total thickness | 40 – 100 mm |
| Surface reflectance | White/grey (high albedo option) |
| Standard | EN 14509 |
Öne Çıkan Avantajlar
- PV rail-compatible profile — works with Schletter, K2, Mounting Systems and standard rails
- Precise installation tolerance — ±2 mm surface evenness prevents PV panel shadowing
- Reflective paint option — albedo value 75%+, GES efficiency increases via ambient reflection
- Watertight connection — double-gasket profile prevents leaks under PV
- Turnkey coordination — technical project designed jointly with GES installer
Kullanım Alanları
Rooftop solar power plants, industrial GES projects, greenhouse roofs, combined GES-heating systems.
Sık Sorulan Sorular
Can the roof carry the PV panel weight?
GES-compatible sandwich panels are designed to operate under 25 kg/m² additional load (PV panels + rails). Structural calculation verified at project stage.
Post-GES maintenance?
Wear is minimized through special paint quality during PV panel cleaning. Gaskets and joints inspected every 5 years.
Additional cost for GES panel?
Compared to standard sandwich panel, 5-8% additional cost, recovered within 1 year through GES efficiency gains.
